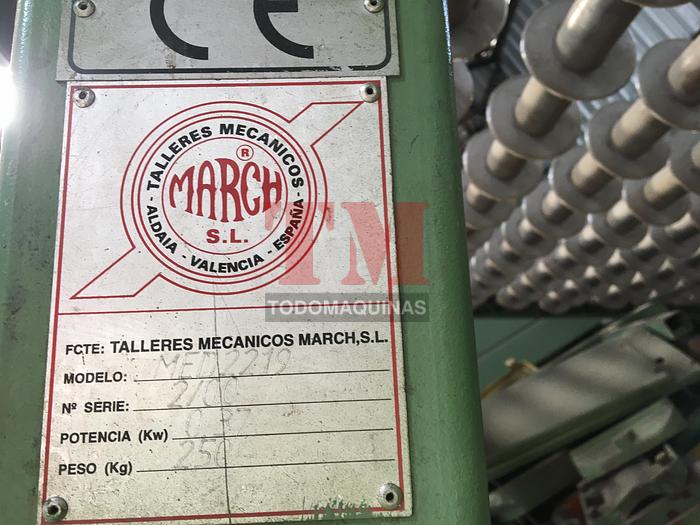

2000 Talleres March PRESSING LINE FOR COATING BOARDS

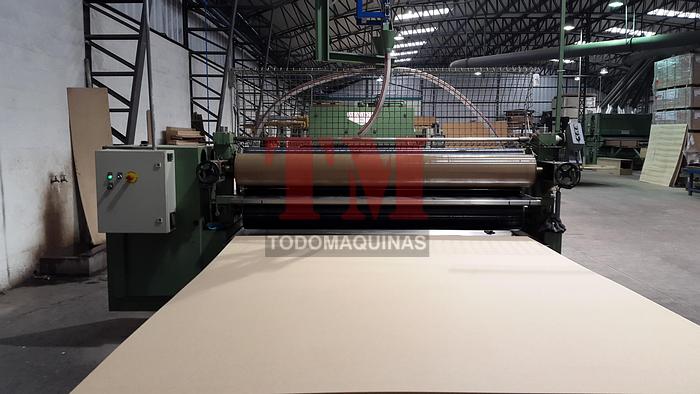

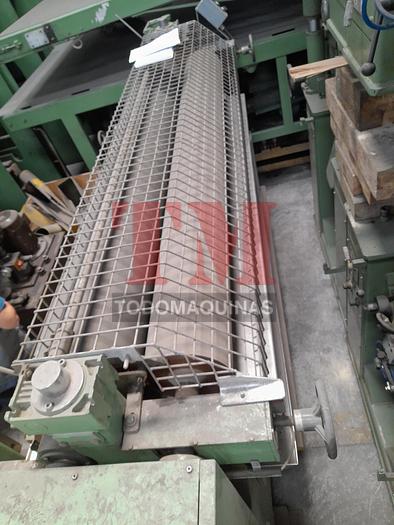

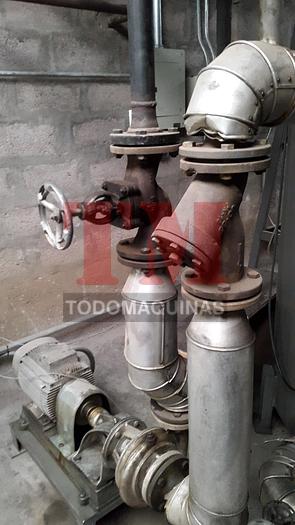

PRESSING LINE FOR THE COATING OF TWO-SIDED PARTICLE BOARD OR MDF WITH DECORATIVE SHEETS MADE OF WOOD PLATE OR WITH OTHER MATERIALS SUCH AS HPL, FINISH FOIL, RESIN, ETC. The maximum capacity for this pressing line is 3 boards of 2,200 x 2,600 mm per cycle. The machines that make up the line are: · Hydraulic lifting platform. · Double-sided board gluer · Stainless steel roller conveyor. · Table/conveyor with belt for the formation of boards. · Single hollow hydraulic press · Conveyor/stacker for press output boards Hydraulic lifting platform - Dimensions: 2,500 x 1,200 mm - Capacity: 2,000 Kg. - Opening: 1,600 mm - Closed: 350mm - Power: 3 Kw. - No. of cylinders: 2, diameter 90 mm - Lift time: 34 " - Weight: 820 Kg. 2,300 mm two-sided board gluer Roller gluer with cardan type transmissions for the four rollers. - Useful working width: 2,240 mm - Maximum thickness to glue: 70 mm - Working speed: 30 m. / min. - Glue roller: 350 mm diameter. - Dosing roller: 260 mm diameter. - Installed power: 3.75 Kw. - Gluing rollers with thick rubber coating, rectified and threaded according to the needs of the work to be done. - Metering rollers coated with ebonite and rectified. - Support tray at the entrance of the boards in stainless steel. - Comb-type grill at the outlet of the gluer with a zinc-plated finish. - Waste tray in stainless steel. - Nylon tail retaining stops for good friction on the rollers. Finished bumper supports zinc plated - Built-in electrical cabinet. 1,900 x 2,200 mm disc table Roller conveyor with stainless steel rollers to transport glued boards from the gluer to the prep table. To activate the rollers, a 1 Cv motor-reducer is installed that transmits its power to the transmission chains. between the rollers that are 1/2" pitch. The rollers are mounted on a frame of cold profiles. The carrier sits on two wheels on the ground and at the opposite end on the infeed table, thus can be moved longitudinally to easily access the gluer for cleaning or maintenance. 2,200 x 8,500 mm entry or preparation table Conveyor with PVC band for the formation of the boards before being pressed. It incorporates a support to deposit the sheets or other materials that are going to cover the boards to be pressed. The drive of the band is carried out by means of a motor-reducer of 3 Cv of power, controlled by a converter of frequency to match the linear speed along with that of the press loading film. The handling of the drag band is carried out by means of two pedals arranged in the operator's work environment. A electric photocell at the end of the conveyor belt ensures that the boards are positioned properly to be introduced in the press. PCC2280 Mono hollow press 2,200 x 8,000 mm Single hollow hydraulic press for coating boards with different materials on both sides. - Dimensions of the plates mm: - Width: 2,200 Length: 8,000 Thickness: 90 - Load side: 2,200 mm - No. of dishes: 2 - No. of holes: 1 - Opening between plates: 110 mm - No. of cylinders: 30 - Cylinder diameter: 140 mm - Hydraulic power: 1,150 Tn. - Maximum applied pressure: 7 Kg. / cm² - Hydraulic equipment: 11 Kw. (15 HP) - Board transport device using “Mylar” film. The film is attached to a transport system with pitch chains 1”. - 5.5 Kw board transport system drive motor reducer. (7.5 Cv.) of power. - Linear speed 30 M/min. (approx). - Myler roll Building details: - S355 J2G3 quality laminated sheet steel structure. - Frame made of one-piece 35 mm thick. Joined together with threaded bars. - No. of frames that make up the frame: 11 - Solid one-piece plates made of S355 J2G3 quality steel. Drilled to be heated with oil thermal. - Independent heating circuits on each tray: 4 - Connection hoses (flexible tubes) with the 1” pitch thermal oil distribution manifolds. - The calorific power required to heat the two plates of the press is: 370,000 Kcal. /h. for two-sided board veneer. - Desk-type electrical cabinet installed next to the press. It has pressure adjustment controls, working and pressing time. - Total electrical power: 16.5 Kw. 2,200 x 8,000mm stacker and press output table PVC belt conveyor installed after hydraulic press. The advance speed of the conveyor belts is the same as that of the conveyor film incorporated in the press to receive the boards once the pressing process is finished. This conveyor has the function of stacking boards. The board stacking maneuver is automatic. The boards are deposited one on top of the other while an electric photocell is in charge of controlling the position of the board. conveyor. The drive of the conveyor belts is carried out by means of a 3 Cv motor-reducer. power, controlled by a frequency converter to adapt the linear speed together with that of the film of the press. To activate the stacking function, a geared motor with a power of 1.5 Cv is installed. The conveyor has its own electrical control cabinet. Boiler for thermal oil The boiler includes: - Electrical control cabinet with automation for on and off. - Main oil circulation pumps. - Two secondary pumps for each tray with independent temperature control valve. - Thermal oil circulation pipe. - Chimney for gas emission. - Fuel storage tank (diesel). With pump for automatic feeding. - Thermal oil pressure expansion tank. - Secondary fuel tank to feed the boiler. - New diesel burner. - DOES NOT INCLUDE THERMAL OIL.
